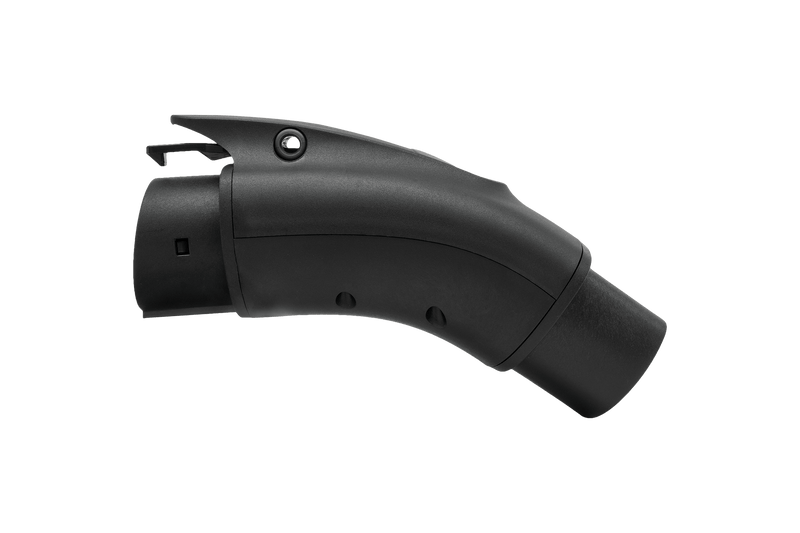

CCS2-AC (TYPE2) to J1772 Adapter
Sold with Jowua's lock.
Patented Chip Design
Built-in Jowua exclusive design communication chip.
Best Defense from Unplugs
Car end lock: Prevents the adapter from being pulled away from the car.
＊Note: Since some models do not have a car-end locking mechanism, the car-end lock can be used depending on the vehicle's condition. (One free padlock is included.)
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N.
Rated Operating Current: 32A (MAX)
Operating Voltage: 250V (MAX) AC
International Dustproof and Waterproof Ratings
Completely sealed, dustproof and waterproof, don't worry about rainy days.
Excellent Protection Performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)
|Rated Current||32A (MAX)|
|Rated Voltage||250V (MAX) AC|
|Insertion Force||F < 80N|
|Connector Durability||No-load plug/unplug > 10,000 cycles|
|Flame Retardant Grade||UL94 V-0|
|Terminal Temperature Rise||50K|
|Ambient Temperature||-30°C to + 50°C|
|Charging Standards Compatibility||
For ALL J1772 EVs
Compatible with TYPE2(CCS2-AC) charger,
which is the standard connector used in the EU.
特斯拉 Model 3&Y 專用
＊ONLY to be used with AC charging.
NOT COMPATIBLE with CCS2 DC Super Charger.
Security Lock Design
Prevent from unplugged.
Protect against water and dust.
No-load plug/unplug >10,000 cycles, and F<80N
UL 94V-0 Flame Retardant
Fire resistance and self-extinguishing.

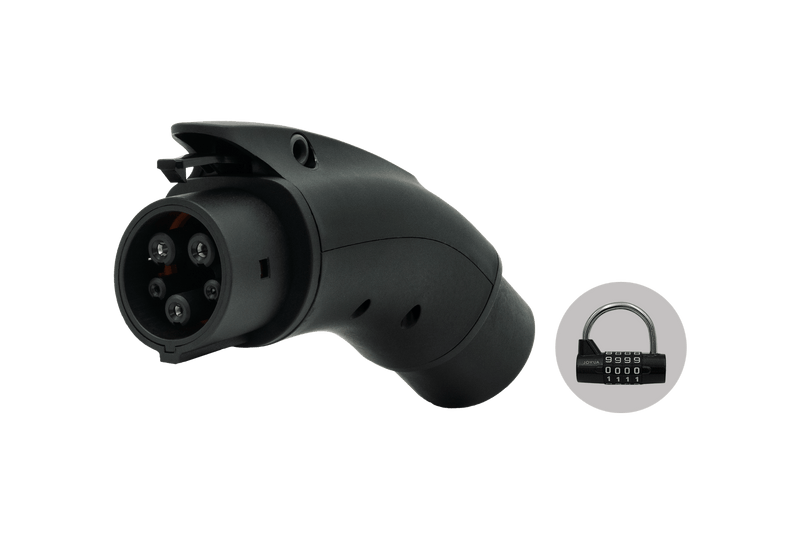

Go With Padlock, The Best Defense from Unplugs
。Shackle diameter 4.75mm.
。Made of durable Zinc Alloy.
。Numbers are easy to read.
。10,000 combinations of codes.

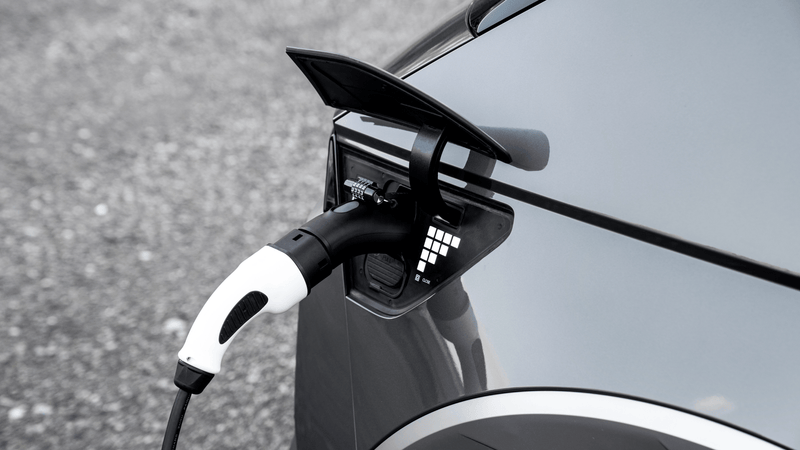

Car end lock:
Prevents the adapter from being pulled away from the car.
＊Note: Since some models do not have a car-end locking mechanism,
the car-end lock can be used depending on the vehicle's condition.
。Prevent water and particle ingress.
Making it safe to charge even when it’s raining.
