JOWUA

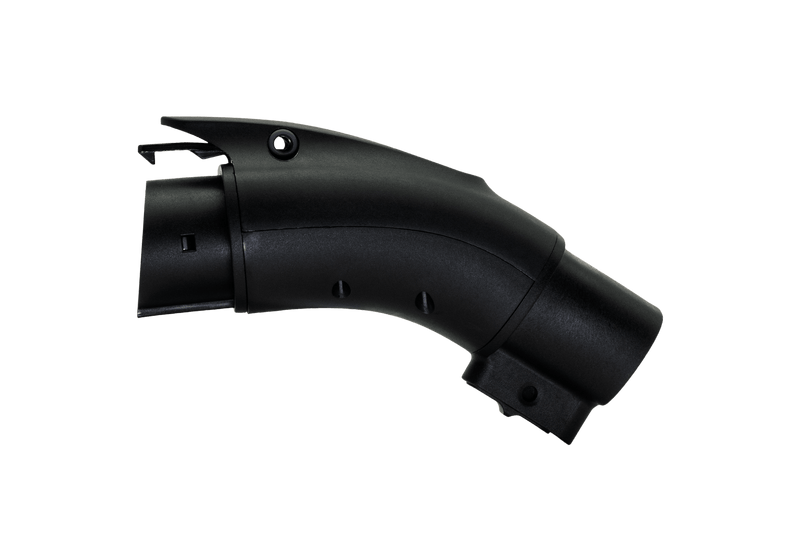

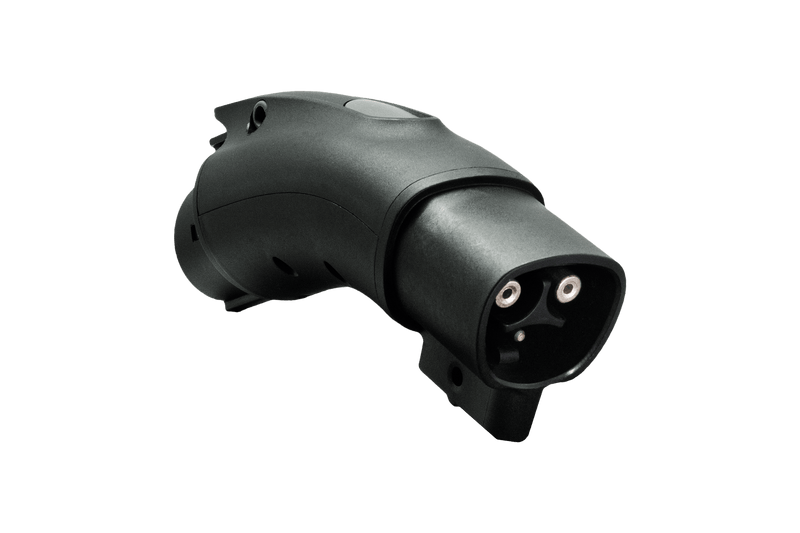

TPC(NACS) to J1772 Adapter
SKU: BFG22110402
❗Only compatible with AC Charging. Not compatible with DC Fast Charging.
Sold with Jowua's lock.
Description
For AC wall connector charging only. Not compatible with Tesla Supercharger.
Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N.
Best Defense from Unplugs
JOWUA padlock design prevents unplugging from people in the public parking lot. (One padlock is included)
- Cable end lock: Prevents the charging cable from being pulled away from the adapter.
- Car end lock: Prevents the adapter from being pulled away from the car.
*Note: Since some models do not have a car-end locking mechanism, the car-end lock can be used depending on the vehicle's condition.
Electrical Performance
Rated Operating Current: 48A (MAX)
Operating Voltage: 250V (MAX) AC
International Dustproof and Waterproof Ratings
Completely sealed, dustproof and waterproof, don't worry about rainy days.
Excellent Protection Performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)
Spec
Rated Current | 48A (MAX) |
Rated Voltage | 250V (MAX) AC |
Insertion Force | F < 80N |
Connector Durability | No-load plug/unplug > 10,000 cycles |
Flame Retardant Grade | UL94 V-0 |
Protection Grade | IP55 |
Terminal Temperature Rise | 50K |
Ambient Temperature | -30°C to + 50°C |
Charging Standards Compatibility |
SAE J1772:2010 |
For ALL J1772 EVs
Compatible with Tesla high power wall connector,
Tesla destination charger, Tesla mobile connector.
特斯拉 Model 3&Y 專用
*ONLY to be used with AC charging.
NOT COMPATIBLE with Tesla Super Charger.

Security Lock Design
Prevent from unplugged.
International Protection
Protect against water and dust.
Durability
No-load plug/unplug > 10,000 cycles, and F < 80N
UL 94V-0 Flame Retardant
Fire resistance and self-extinguishing.

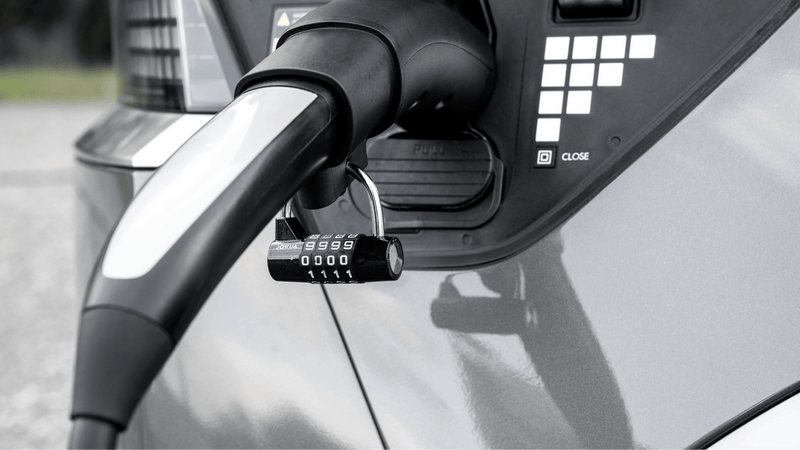

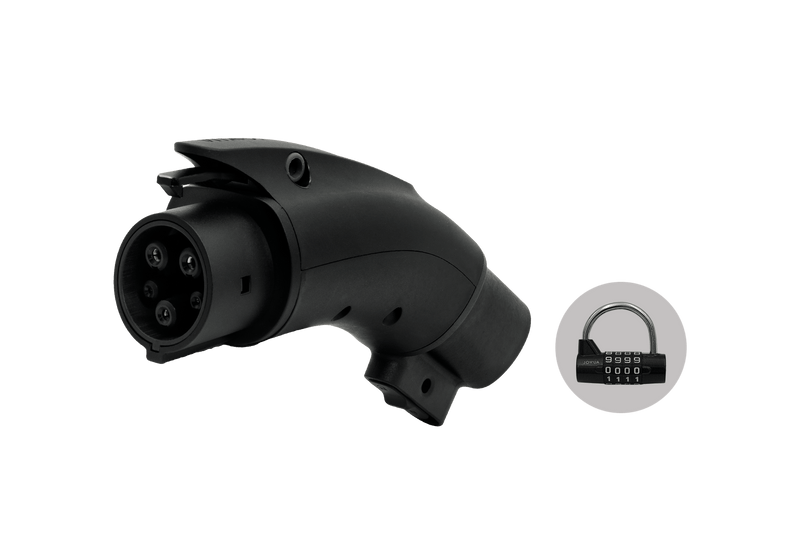

Go With Padlock, The Best Defense from Unplugs
。Shackle diameter 4.75mm.
。Made of durable Zinc Alloy.
。Numbers are easy to read.
。10,000 combinations of codes.

Enhanced Security

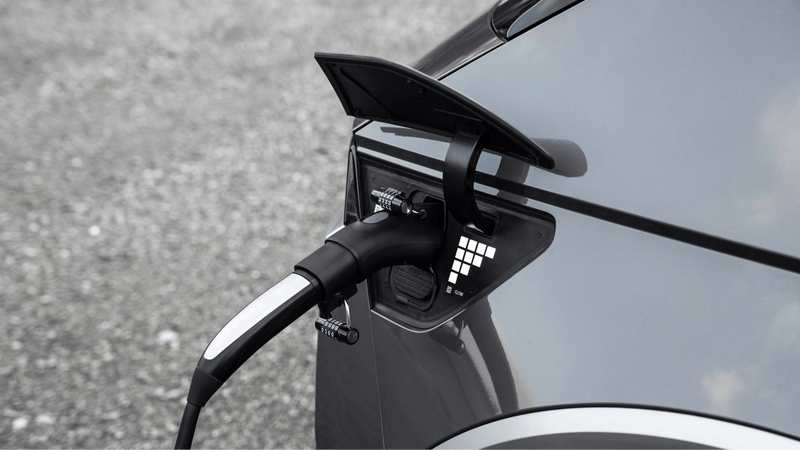

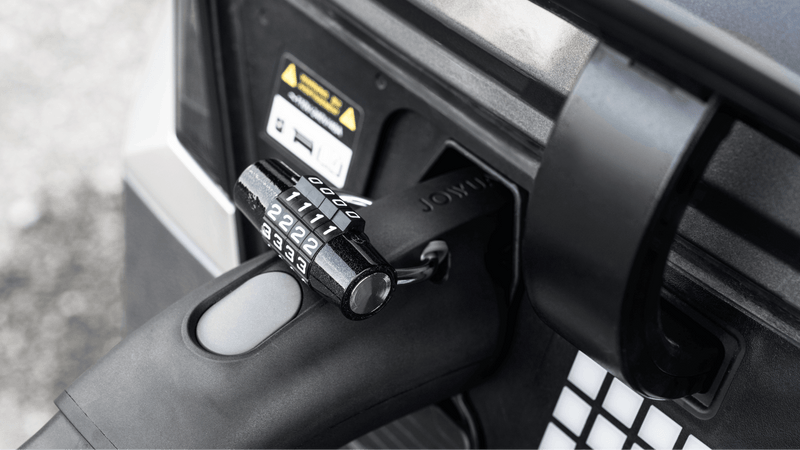

Car end lock:
Prevents the adapter from being pulled away from the car.
* Note: Since some models do not have a car-end locking mechanism, the car-end lock can be used depending on the vehicle's condition.
Cable end lock:
Prevents the charger from being pulled away from the adapter.
Waterproof
。Prevent water and particle ingress.
Making it safe to charge even when it’s raining.


EV J1772

Connector TPC
