CCS2-AC (TYPE2) to J1772 Adapter
Sold with Jowua's lock.
Description
Patented Chip Design
Built-in Jowua exclusive design communication chip.
Best Defense from Unplugs
Car end lock: Prevents the adapter from being pulled away from the car.
＊Note: Since some models do not have a car-end locking mechanism, the car-end lock can be used depending on the vehicle's condition. (One free padlock is included.)
Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N.
Electrical Performance
Rated Operating Current: 32A (MAX)
Operating Voltage: 250V (MAX) AC
International Dustproof and Waterproof Ratings
Completely sealed, dustproof and waterproof, don't worry about rainy days.
Excellent Protection Performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)
Spec
| Rated Current | 32A (MAX) |
| Rated Voltage | 250V (MAX) AC |
| Insertion Force | F < 80N |
| Connector Durability | No-load plug/unplug > 10,000 cycles |
| Flame Retardant Grade | UL94 V-0 |
| Protection Grade | IP56 |
| Terminal Temperature Rise | 50K |
| Ambient Temperature | -30°C to + 50°C |
| Charging Standards Compatibility |
SAE J1772:2010 IEC 62196-2 |
Choose options
For ALL J1772 EVs
Compatible with TYPE2(CCS2-AC) charger,
which is the standard connector used in the EU.
特斯拉 Model 3&Y 專用
＊ONLY to be used with AC charging.
NOT COMPATIBLE with CCS2 DC Super Charger.
Security Lock Design
Prevent from unplugged.
International Protection
Protect against water and dust.
Durability
No-load plug/unplug >10,000 cycles, and F<80N
UL 94V-0 Flame Retardant
Fire resistance and self-extinguishing.

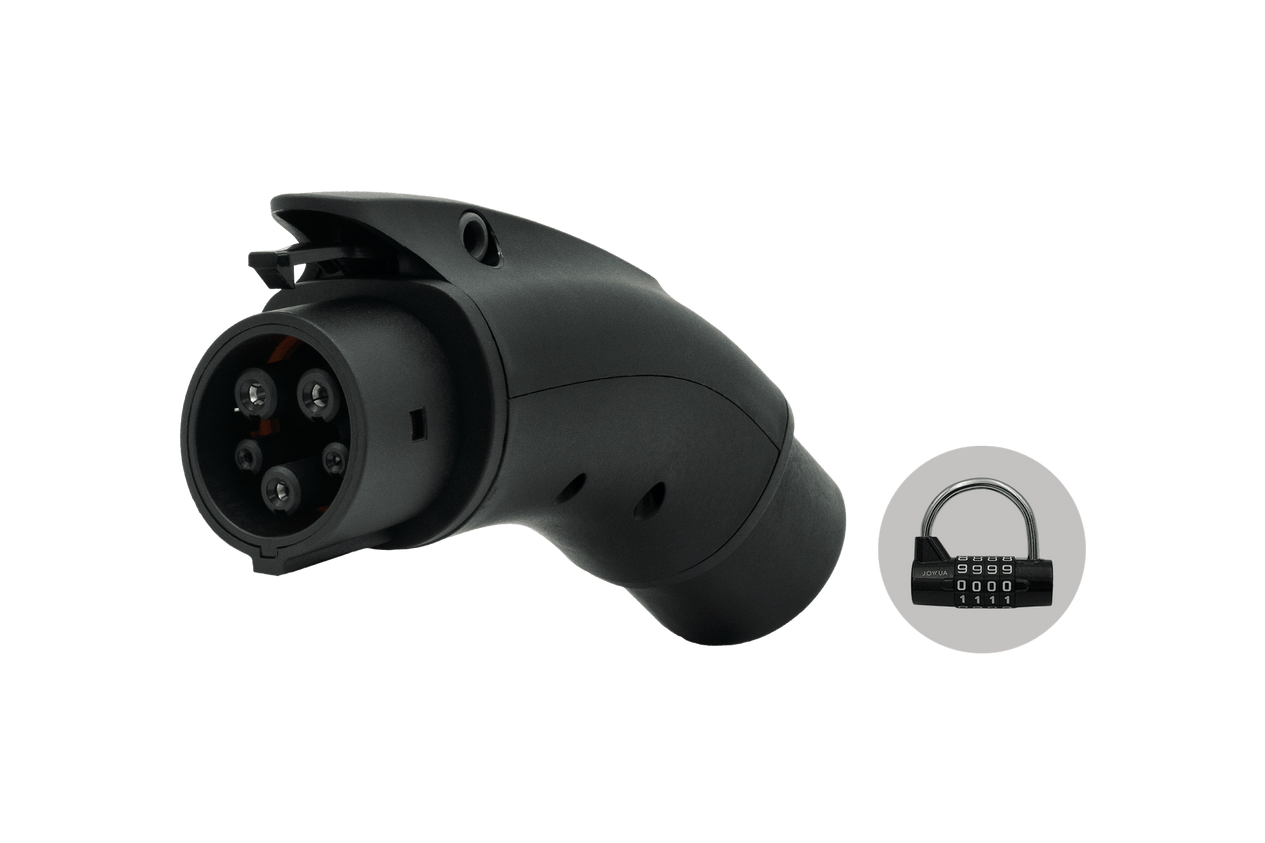

Go With Padlock, The Best Defense from Unplugs
。Shackle diameter 4.75mm.
。Made of durable Zinc Alloy.
。Numbers are easy to read.
。10,000 combinations of codes.

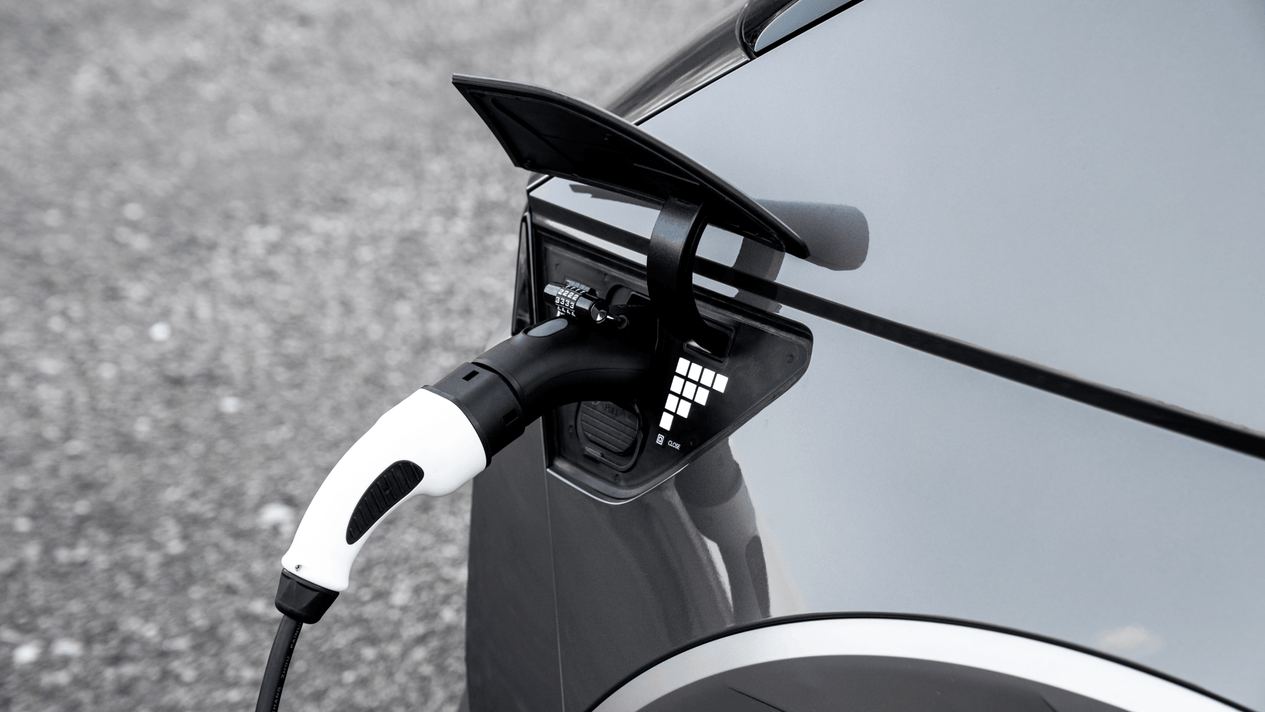

Car end lock:
Prevents the adapter from being pulled away from the car.
＊Note: Since some models do not have a car-end locking mechanism,
the car-end lock can be used depending on the vehicle's condition.
Waterproof
。Prevent water and particle ingress.
Making it safe to charge even when it’s raining.
EV J1772

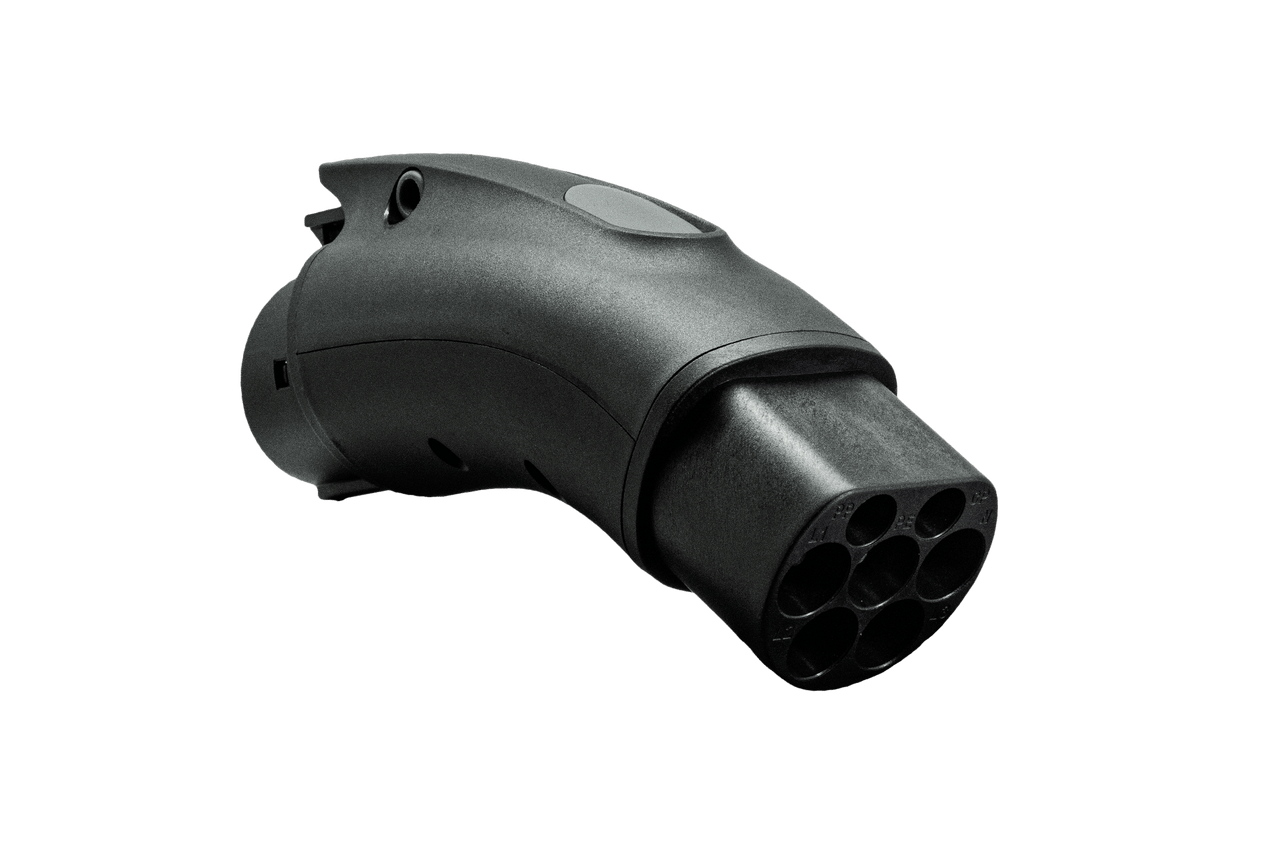

Connector CCS2-AC / TYPE2
